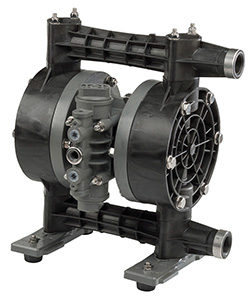

TC-X252 pumps are 1″ pumps available in PVDF high chemical resistance. Featuring new Looped C™ Air Motor technology (patent pending). Both flange and threaded connections available.
|
| Maximum Flow Rate:43.6 GPM (165 LPM) |
| Maximum Discharge Head: 230 FT (70 m) |
| Available in: Glass Fiber Reinforced Polypropylene & Kynar® |
| Spool Valve type: C-Spring Valve |
|
Specifications
|
| Material Code: |
P”X” |
V”X” |
PT |
VT |
| Max Flow Rate: |
43.6 GPM (165 LPM) |
| Max Operating Pressure: |
100 PSI (0.7 MPa) |
| Max Air Consumption: |
56.5 scfm (1600 L/min) |
63.6 scfm (1800 L/min) |
| Supply Air Pressure Range: |
30 to100 PSI (0.2 to 0.7 MPa) |
| Liquid Discharge Volume per Cycle: |
20 oz (600 ML) |
17 oz (500 ML) |
| Connection Size (Suction x Discharge): |
NPT 1″ |
ANSI 150 lb 1″
JIS 10 K25A
DIN 25PN10 |
| Weight: |
24.3 lbs (11 kg) |
29.8 lbs (13.5 kg) |
24.3 lbs (11 kg) |
29.8 lbs (13.5 kg) |
|
|
|
Pump Body Material Code:
P-Glass Fiber Reinforced Polypropylene (PPG)
V-PVDF (Kynar®)
|
|
“X” Diaphragm material options:
T-PTFE (Teflon®)
H-TPEE (Hytrel™)
C-CR (Neoprene™)
N-NBR (Buna)
S-TPO (Santoprene®)
V-FKM (Viton®)
E- EPDM (Nordel™) |
Teflon®, Hytrel®, Neporene™ are registered trademarks of DuPont
Santoprene® is a registered trademark of Exxon
Kynar® is registered trademark of Archema
Nordel™ is a registered trademark of Dow
